Description

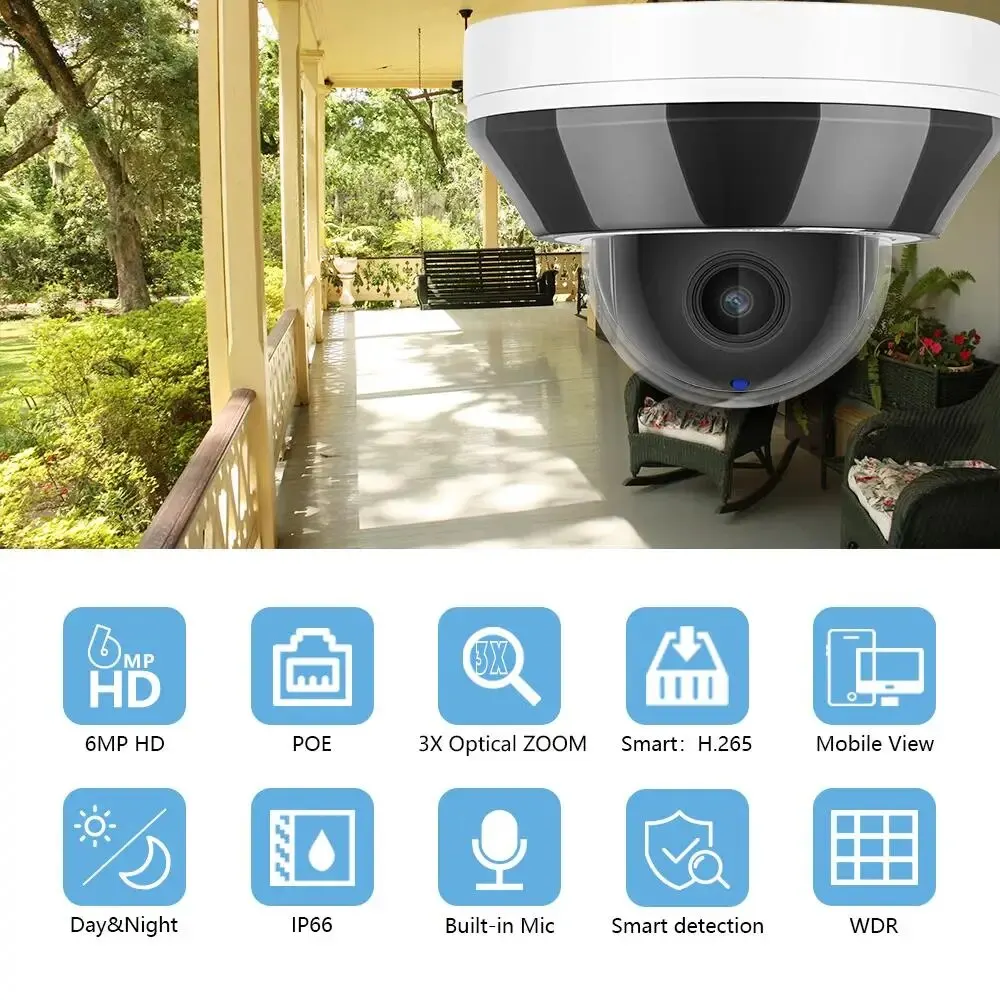

6MP POE PTZ Security Camera Dome 3X Optical Zoom 2.8-8MM Human & Vehicle Detection Built-in Mic Video Surveillance Cameras IP66Before Order:1.What is”HIK Protocl”?HIK products all have HIK Protocl and it support HIK camera plug and play, make it easy to be install with HIK NVR.2.What is”HIK compatible”?It mean this camera support plug & play with HIK NVR(Also HIK software).You don’t need to manual setting camera IP and password etc…Just plug in and camera will work!3. When I installed the camera, How Can I find this camera?download software:AJDevTools(Recommend)//www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exeOr SADP//www.HIK.com/content/dam/HIK/en/support/download/tools/sadp/for-windows/v3-0-2-4/firmware/SADP-Tool-for-Window.zipuse this software search the camera.username: adminpassword: 123456Key Feature :PTZ-3601-IZ6MP 3X Human & Vehicle Detection POE PTZ Dome> 1/2.8″ Sony low-light CMOS sensor> 6MP 25fps resolution 3072×2048> low illumination 0.01Lux> HD 2.8-8mm motorized AF lens , Network PTZ control , 3X optical zoom> Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT> D-WDR, Mirror, flip, Defogging> Multiply Style OSD Overlay,Motion Detection, Privacy Mask> RTSP and O-n-v-i-f 17.06 compatible with many third-party NVR> Smart 265/264 dual-stream media server> Easy-to-use P2P Cloud service> Support user authentication, video data encryption> Support Alarm Snapshot to Email and FTP> Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access> Lightning protection 4000V> Strong water-proof housing IP66> 3 pcs Array IR Leds, IR distance 20-30 metersSupport Night VisionThe smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark)3.0X Optical ZoomThe camera supports 3X Optical Zoom, Press and hold the screen with both hands to Zoom in/OutPan/Tilt FunctionThe lens of this PTZ camera can be rotated, you can see a wider area by remotely controlling the camera on your mobile phone, so that the monitoring doesn’t leave blind spotsBuilt-in Mic (Support 1-way audio recording)Motion Detection and AlarmWhenever a danger is detected, this surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.You can create specific motion detecting zones to monitor certain areas as you want. You can adjust motion detection sensitivity to reduce false alertsOutdoor Waterproof IP66Protection against harsh weather and the environment,The camera is weather and durableRemote surveillance / live view and video play on mobile phone AppPack List :1. 6MP 3X PTZ IPC*12. Waterproof accessories *13. Screw*1 lot4. User guide *15. power adapter *1











Additional information
| Weight | 0.600 kg |
|---|---|
| Dimensions | 15 × 15 × 11 cm |
| Brand Name | Ziksecu |
| Zoom type | Optical zoom |
| Megapixels | 6mp |
| Zoom | None, 3x optical zoom |
| Origin | Mainland China |
| High Definition | 6.0 Megapixels |
| High-concerned chemical | None |
| Lens Quantity | Single Lens |
| Supported Operating Systems | Windows 7 |
| Lens (mm) | 2.8-8mm |
| Power Supply | With Poe |
| Style | Dome Camera |
| Connectivity | IP/Network Wired |
| Installation | Ceiling |
| Scene | Indoor and outdoor |
| Color Night Vision | No |
| Internal Storage | None |
| Video Compression Format | H.264, H.265 |
| IR Distance(m) | 20M |
| Certification | CE |
| Color | WHITE |
| is_customized | No |
| Model Number | PTZ-3601-IZ |
| Supported Mobile Systems | Android |
| Smart home platform | Other |
| AI Functions | Vehicle Detection |

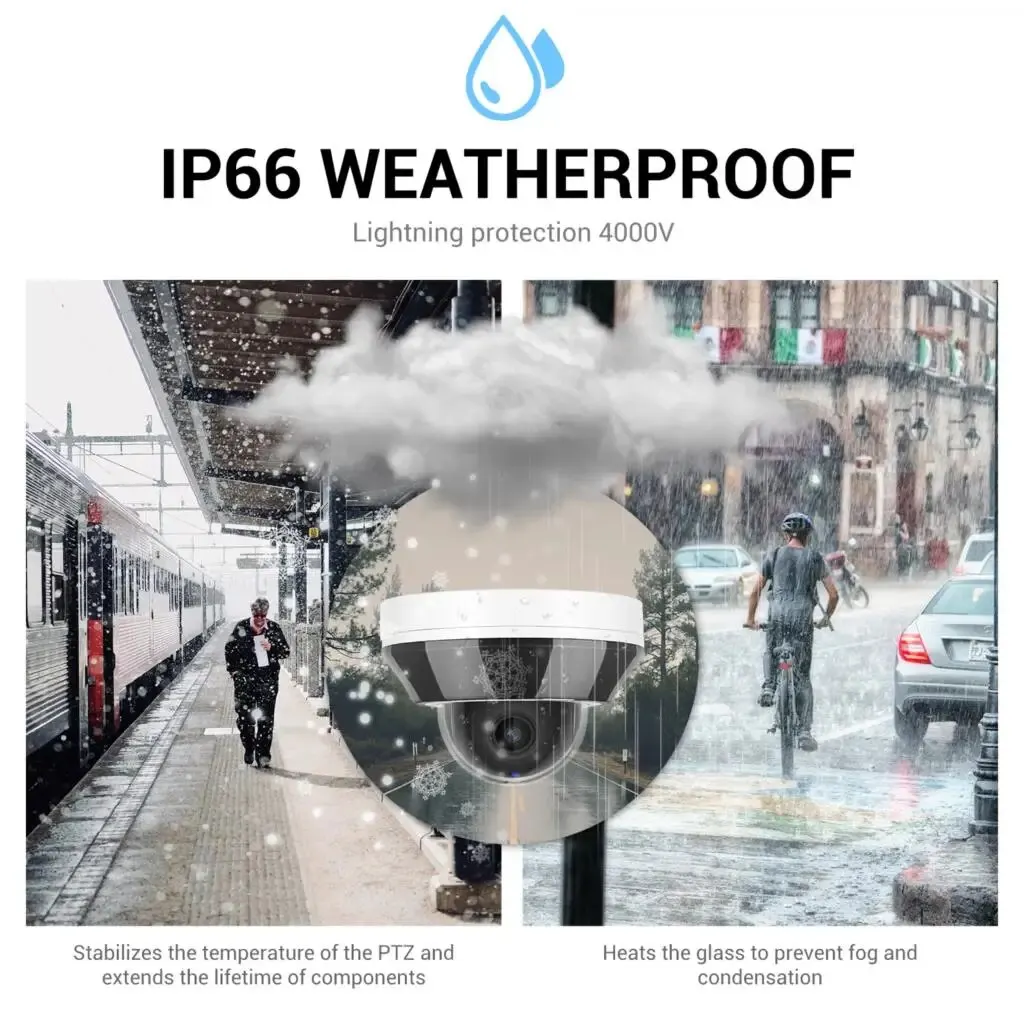

| IP Rating | IP66 |
| TF Card | None |
| Power Supply(V) | 12 VDC ± 10% |
| Audio Output | 1CH BNC |
| Power Consumption(W) | < 10 W |
| Sensor | CMOS |
| Sensor Brand | Sony |
| Operating Temperature | -10°-60° |
| Viewing Angle | 360° |
| Power Source | With Poe |
| Type | 6MP 3X Human & Vehicle Detection POE PTZ Dome |
| Wall Bracket | Ceiling |

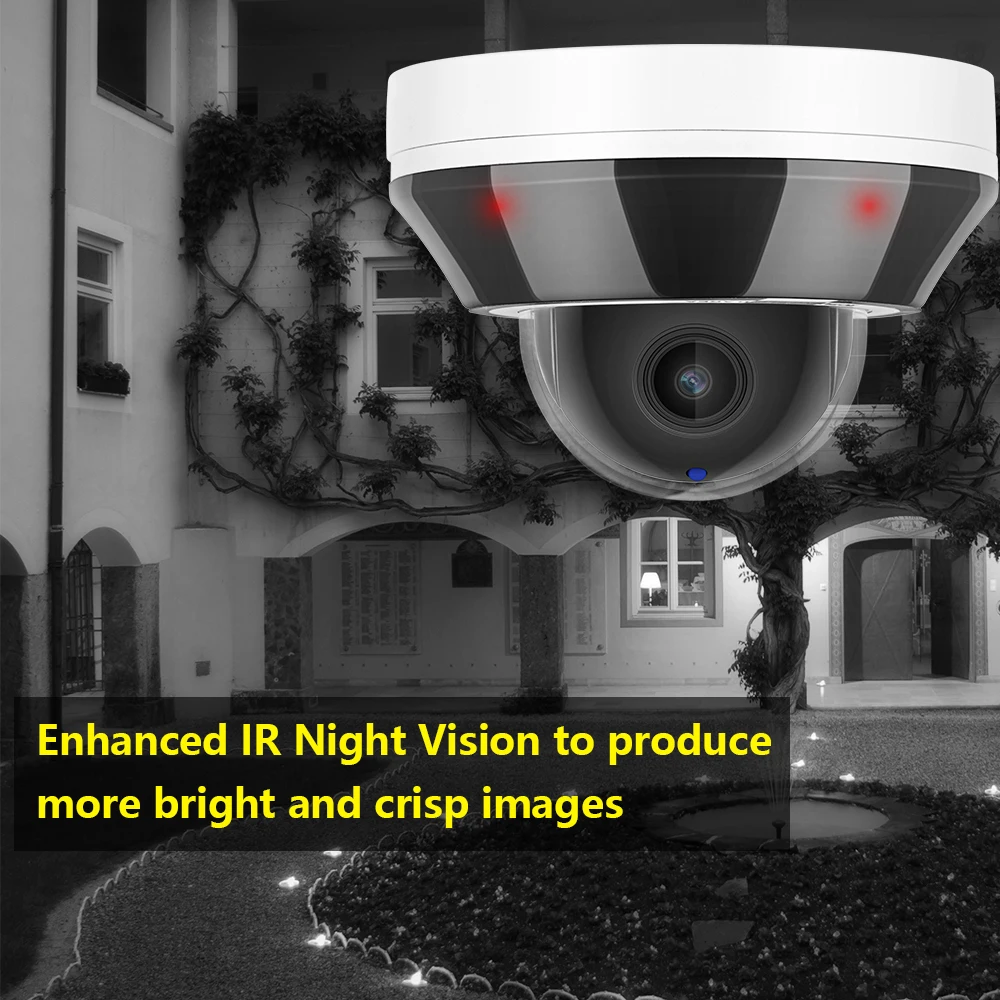

| Technology | Infrared |
| Network Interface | 1-RJ45, 100Mbps, POE optional |
| CMOS | 1/2.8 CMOS |
| Max.Resolution | 3072×2048 |
| Day/Night | Auto/Scheduled |
| Main Profile | H.265 CCTV Camera |
| Aperture Range | F1.2 |
| Number of Preset | 255 |
| Camera | Hikvision Compatible 4MP 4X Zoom IR PTZ Network IP Camera |
| Focal length | 2.8-8mm motorized AF lens |
| Manual Control Speed | Pan: 0.5° ~80° /s; Tilt: 0.5° ~60° /s |
| Pan/Tilt Range | Pan: 0° ~ 350°; Tilt: 0° ~ 90° |
